WellSentinel™
Continuous Integrity Monitoring and Early Detection for Subsea Wells.
This novel approach to subsea asset integrity management not only improves risk management but also delivers significant cost savings, reduces emissions and enhances personnel safety.
Lower Subsea Well Risk
WellSentinel™ systems provide continuous integrity monitoring of subsea assets and equipment—without the need for complex interventions, active subsea power, or ongoing data communication.
Applicable across the entire well lifecycle:
Lower risk and enhance well integrity management
Enable early detection and warning of subsea emissions
Deliver continuous, long-term monitoring without interruption
Easy to deploy with no in-well intervention required
Optimize plug & abandonment (P&A) schedules and extend late-life well production
Streamline monitoring operations, cutting both operational costs and environmental impact
Deploy our WellSentinel™ systems onto any subsea asset or directly onto the seabed. The system is specifically designed to capture and detect any subsea emissions from your asset.
Infrastructure monitored to date:
Wellheads
Christmas trees (XTs)
Manifold
Bespoke
Once installed, WellSentinel™ technology continuously monitors for any leaks or emissions from your assets.
Key features:
Continuous well integrity confidence
Options for 20-year, maintenance-free deployment
Early detection of emissions/leaks from assets
Our proprietary Trigger technology is designed to detect emissions and leaks using a fully passive approach that requires no active subsea power or data communication. Each Trigger is engineered to respond to a single, specific material—ignoring all other typically found subsea.
See our detection capabilities:
If an emission is detected, the system mechanically releases an individually coded WellSentinel™ alert beacon to the ocean surface. The beacon then communicates the alert via satellite, notifying the asset owner and enabling a coordinated response.
Utilizes field-proven Alert Beacons that have been deployed thousands of times offshore
Alerts can be configured to meet client-specific requirements (e.g., onshore bases, response teams, control rooms)
Configure Monitoring Module with Passive Triggers
All passive detection equipment is contained in a sub-assembly known as the Monitoring Module
- This module houses Sentinel’s proprietary Trigger mechanism, which securely holds an Alert Beacon in place
- Sentinel has developed Triggers for oil, gas (thermogenic), CO₂ and other fluids
- Simply install the appropriate Trigger for your target fluid prior to deployment

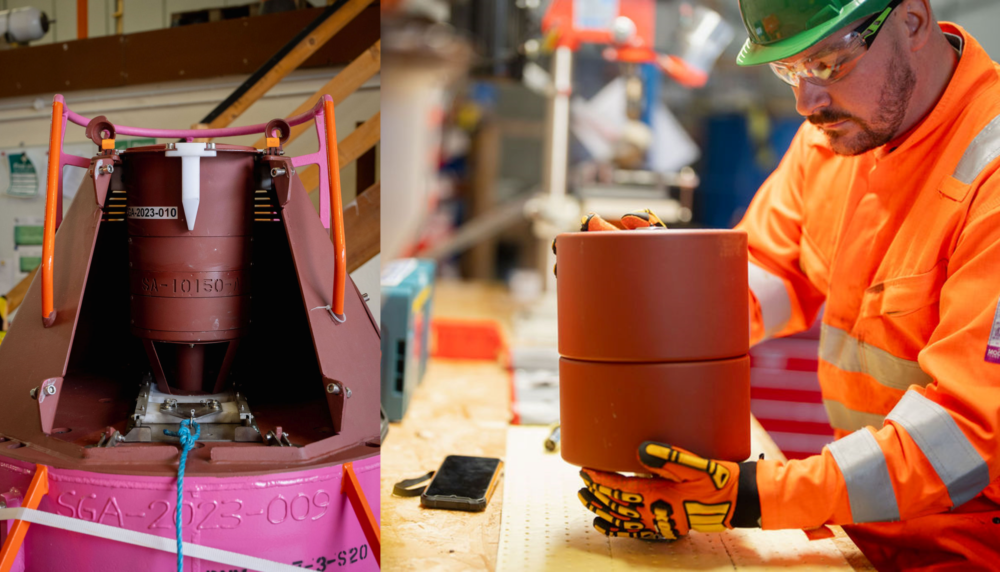

Close-up of the Monitoring Module with Trigger and Alert Beacon set in Sentinel's Aberdeen Workshop, UK
Install System onto the Asset
Deploy our WellSentinel™ systems (including the Monitoring Module) onto the subsea asset or directly onto the seabed
- Installed onto subsea assets, requiring no in-well intervention
- Lifted from the offshore vessel to wellsite via heave-compensated crane and ROV support only
- Multiple WellSentinel™ designs has been successfully deployed onto wellheads, subsea christmas trees (XTs), and manifolds

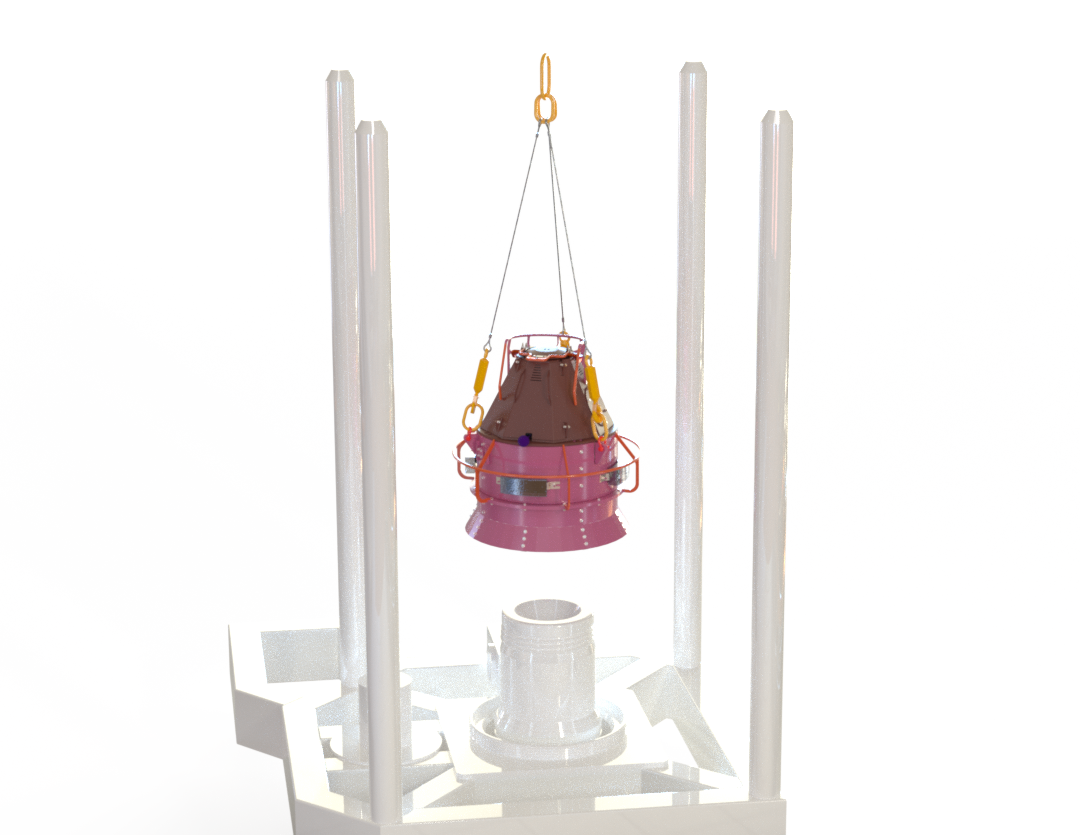

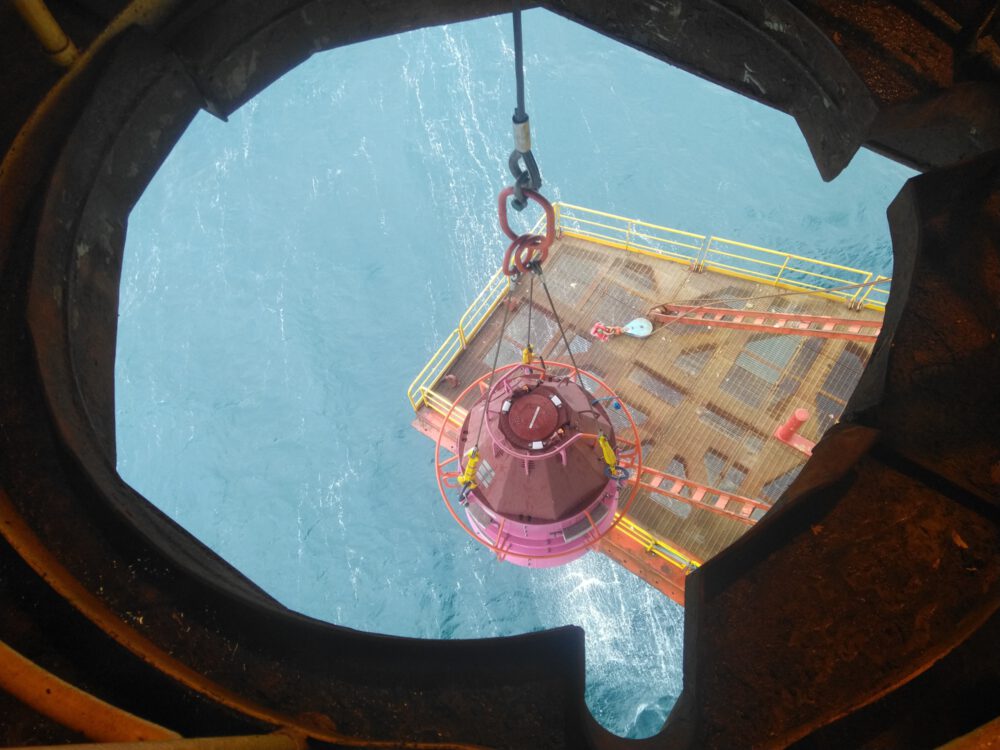

Image of WellSentinel™ Coral being lifted for deployment in the North Sea, UK
Designed to Capture Emissions
Our system is specifically engineered capture and direct emissions in the event of a Loss of Containment (LoC)
- Capture principle successfully demonstrated in the Southern North Sea in 2021
- Supports direct, vertical and current-based capture techniques
Analysis of metocean and subsea data to optimize capture
Visual showing emissions being captured using WellSentinel™ Coral and WellSentinel™ Oyster systems.
System Installed and Integrity Confirmed
Once installed with the appropriate Triggers, the system provides long-term continuous monitoring without further intervention or maintenance
- WellSentinel™ monitoring and alerts are configured to integrate with each operators WIMS
- Designed for long-term deployment up to 20-years
- Systems are flexible and can be set to various alert thresholds

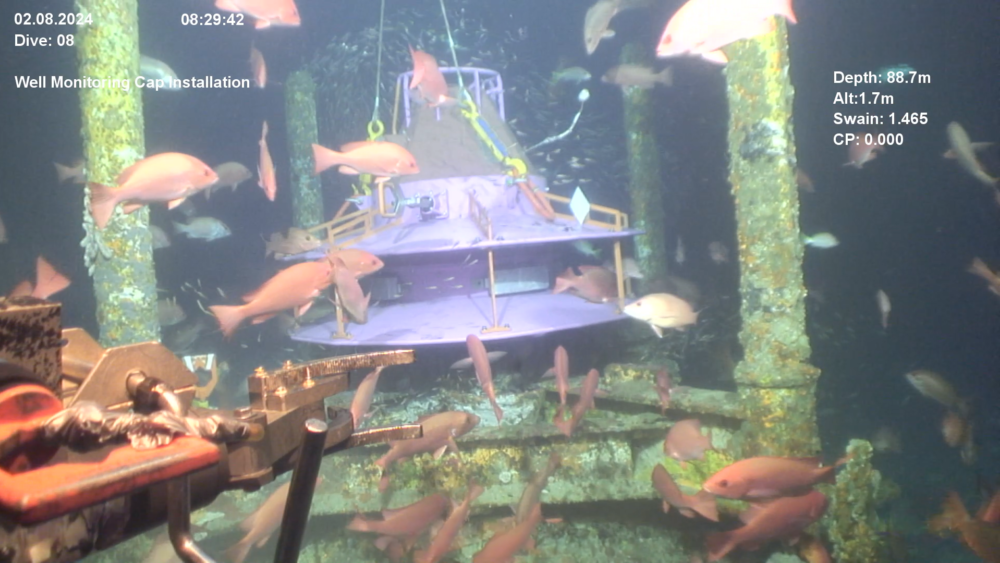

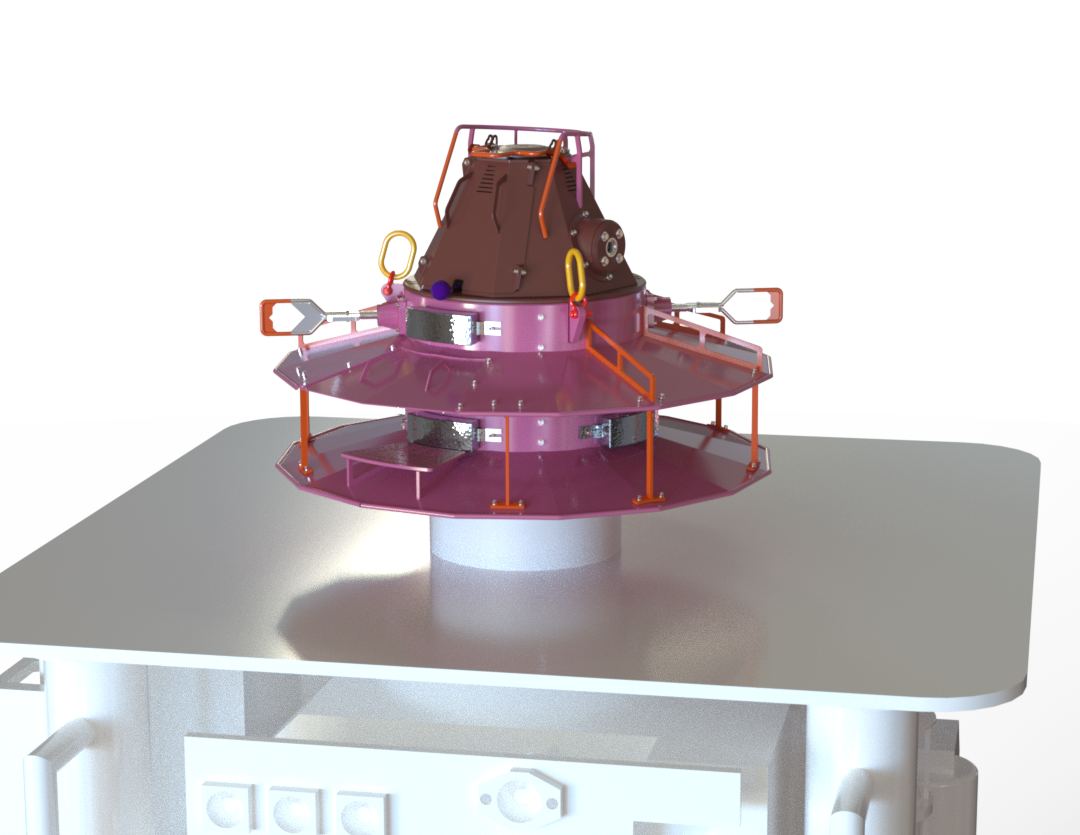

Image showing WellSentinel™ Hybrid deployed onto a Subsea Well
Passive Trigger Detection and Alert Beacon Released to Surface
Should there be an emission, the system passively detects this and mechanically releases an individually coded Alert Beacon to the ocean surface.
Passive detection and release entirely based on chemical and physical principles, without relying on electronics
Increased reliability in harsh subsea environment
Electronics are limited to the Alert Beacon, which is only activated upon when reaching the surface

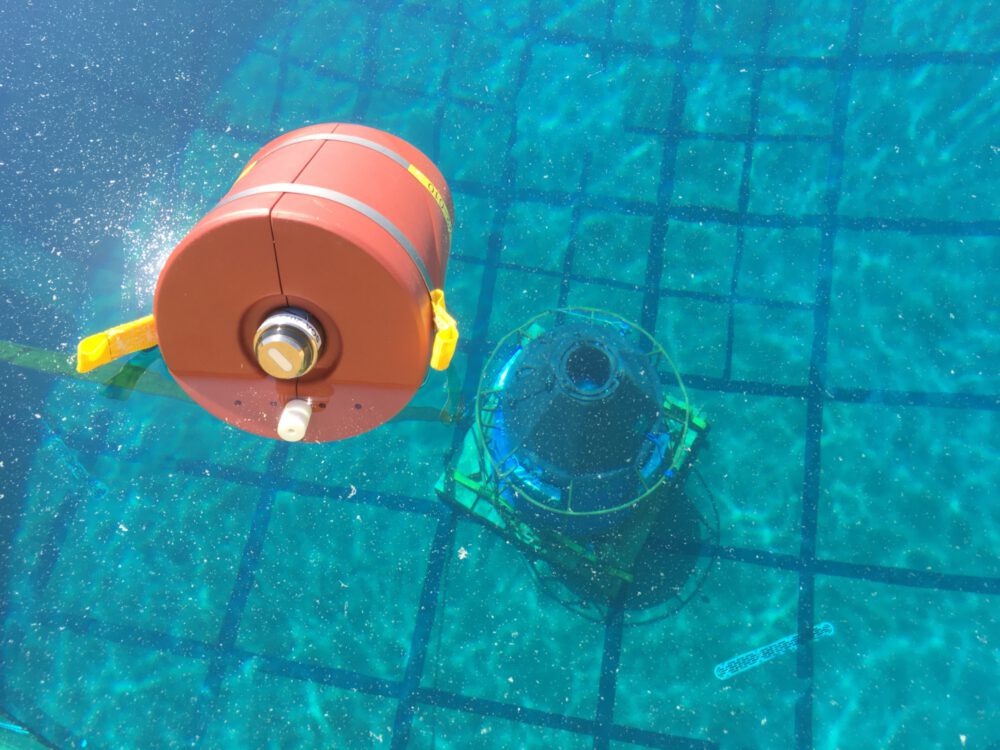

Image showing an Alert Beacon release to surface following Demonstration in Houston, USA
Get an Instant Asset Integrity Alert via Satellite
Upon surfacing, the beacon switches to active mode, connects to the Iridium satellite network, and sends alerts to designated recipients
- Each beacon has a unique code linked to a specific well, ensuring immediate identification when an alert is received
- Surfaced beacons can be tracked via GPS, aiding in monitoring fluid movement and simplifying beacon retrieval
Sentinel provides an in-house portal that can be utilized for Asset Integrity Alerts. Alternately Sentinel will work with other online digital platforms.
Designed to monitor your subsea well
Sentinel offers a range of WellSentinel™ systems designed to monitor various subsea wells and infrastructure — including subsea wellheads, christmas trees (XTs), manifolds, and more.
Subsea Christmas Tree (XT)

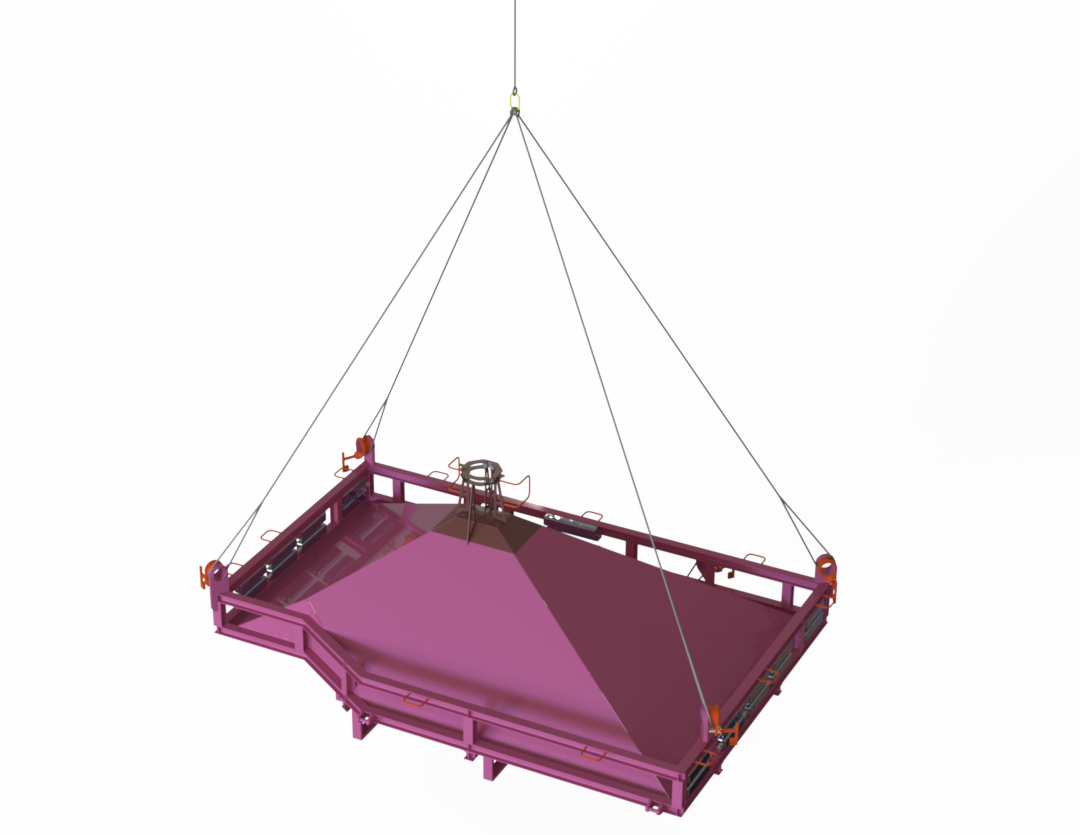

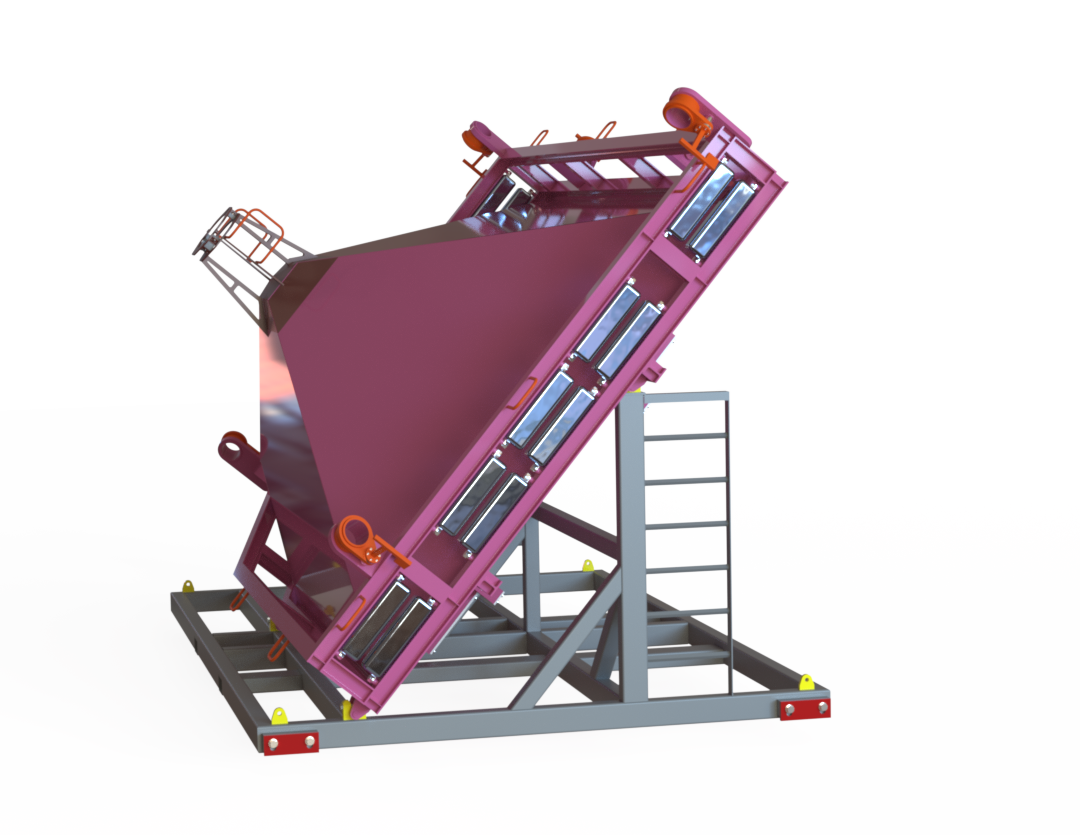

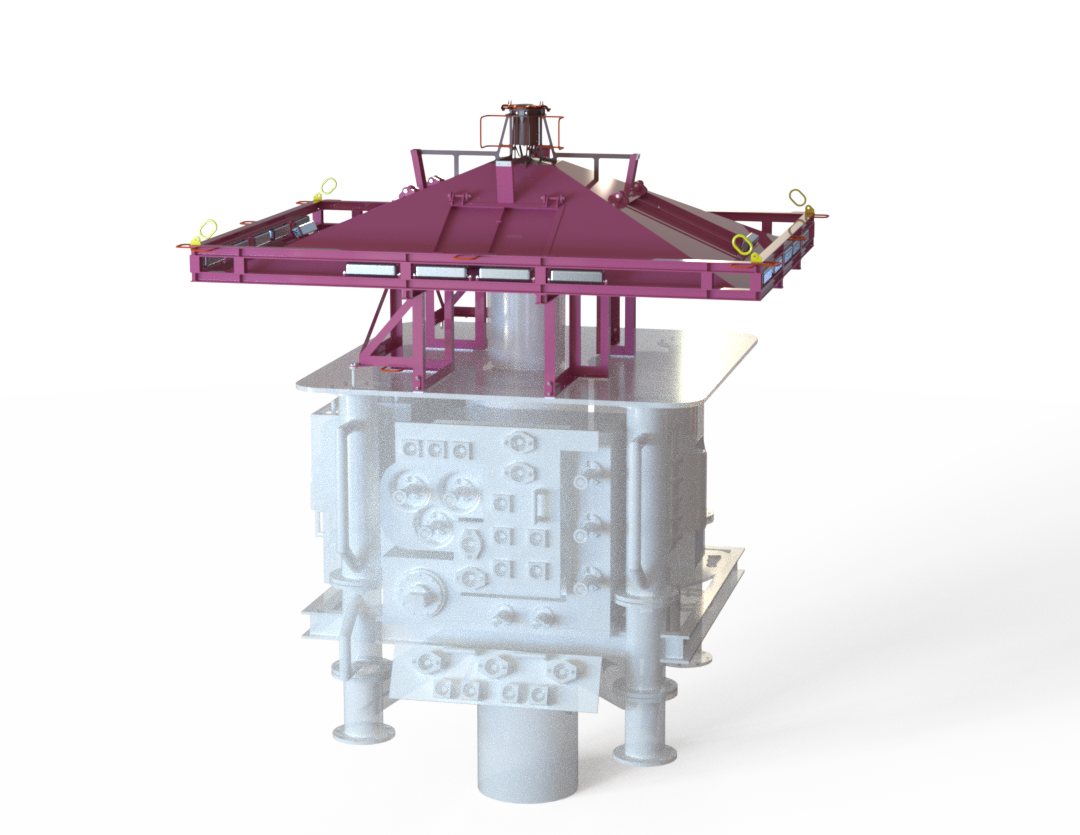

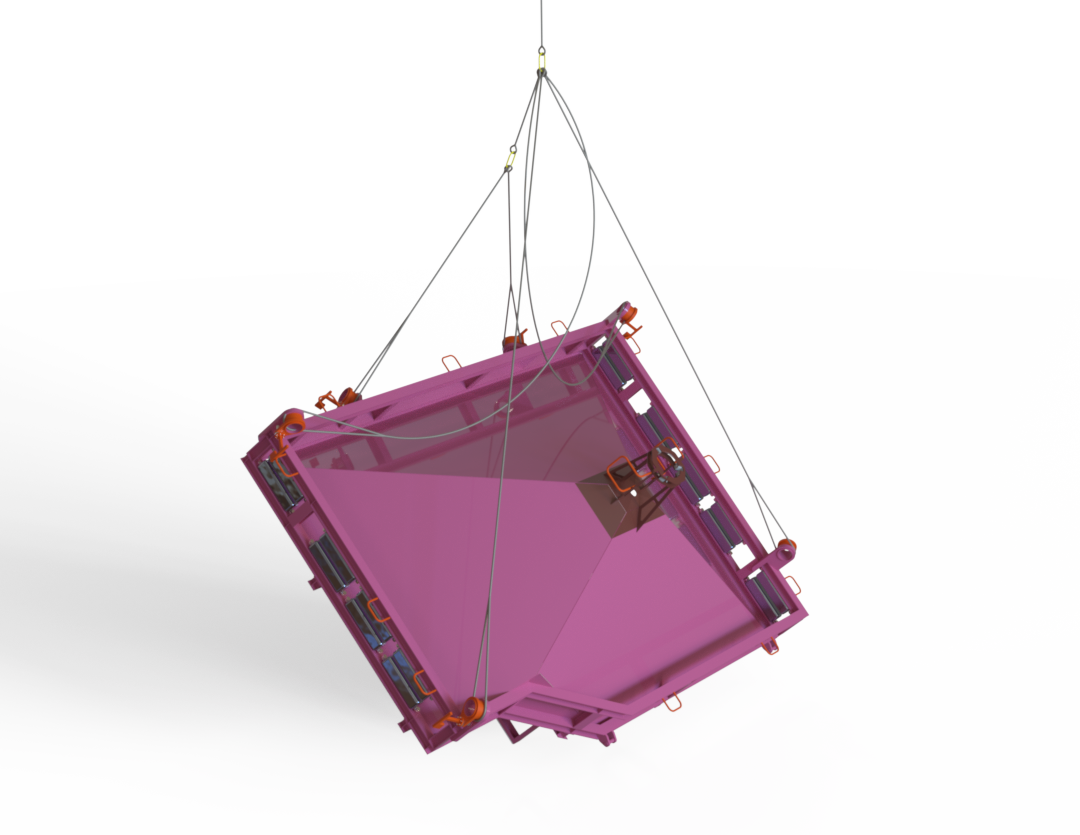

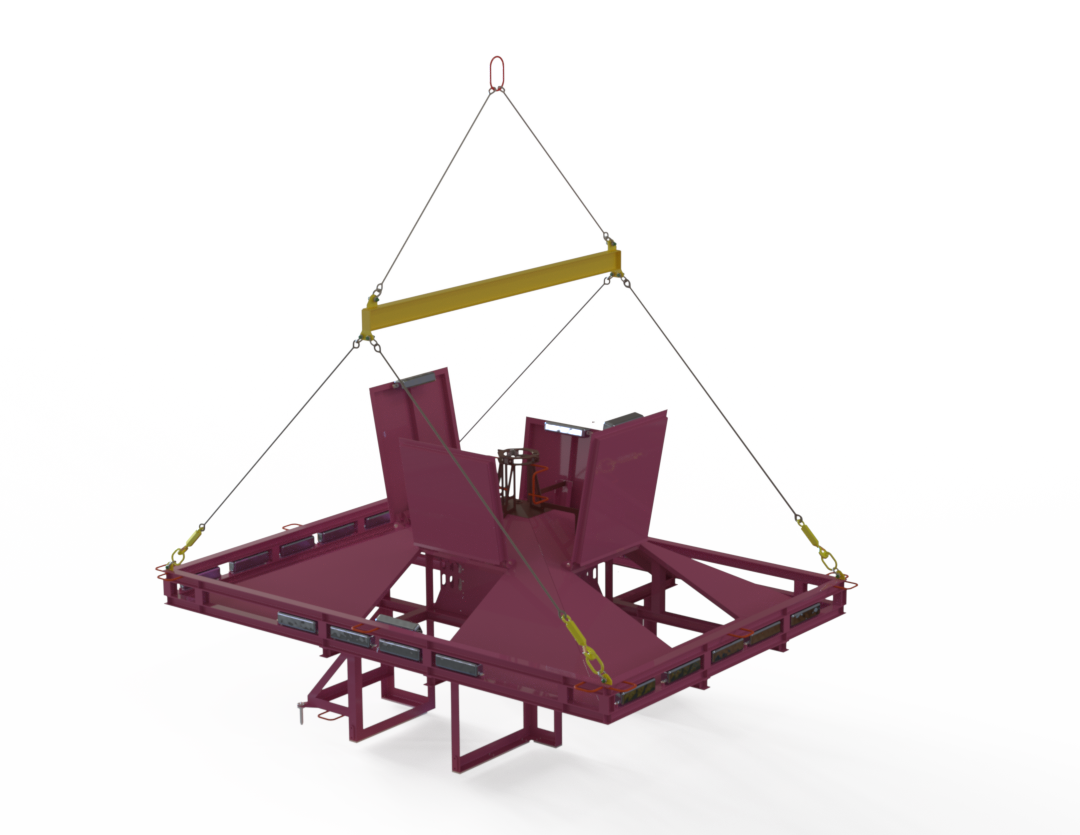

WellSentinel™ Clam
WellSentinel™ Clam systems are TRL - Level 9 and are a canopy-style solution designed to provide extensive area monitoring coverage for subsea Christmas trees (XTs).
The system is designed to be installed over the tree mandrel or the top of the tree that has no protective structure in place.
We collaborate closely with clients to develop a customised solution tailored to their specific subsea Christmas tree requirements.
Subsea Christmas Tree (XT) w/Protective Structure

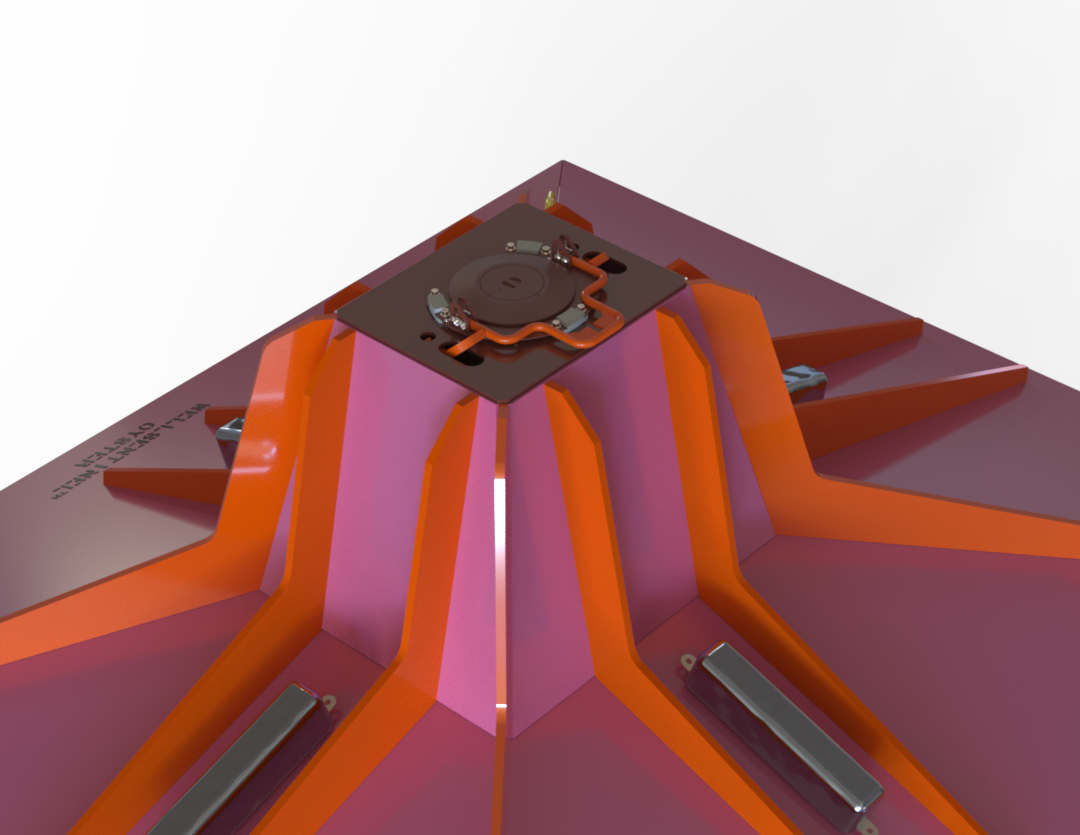

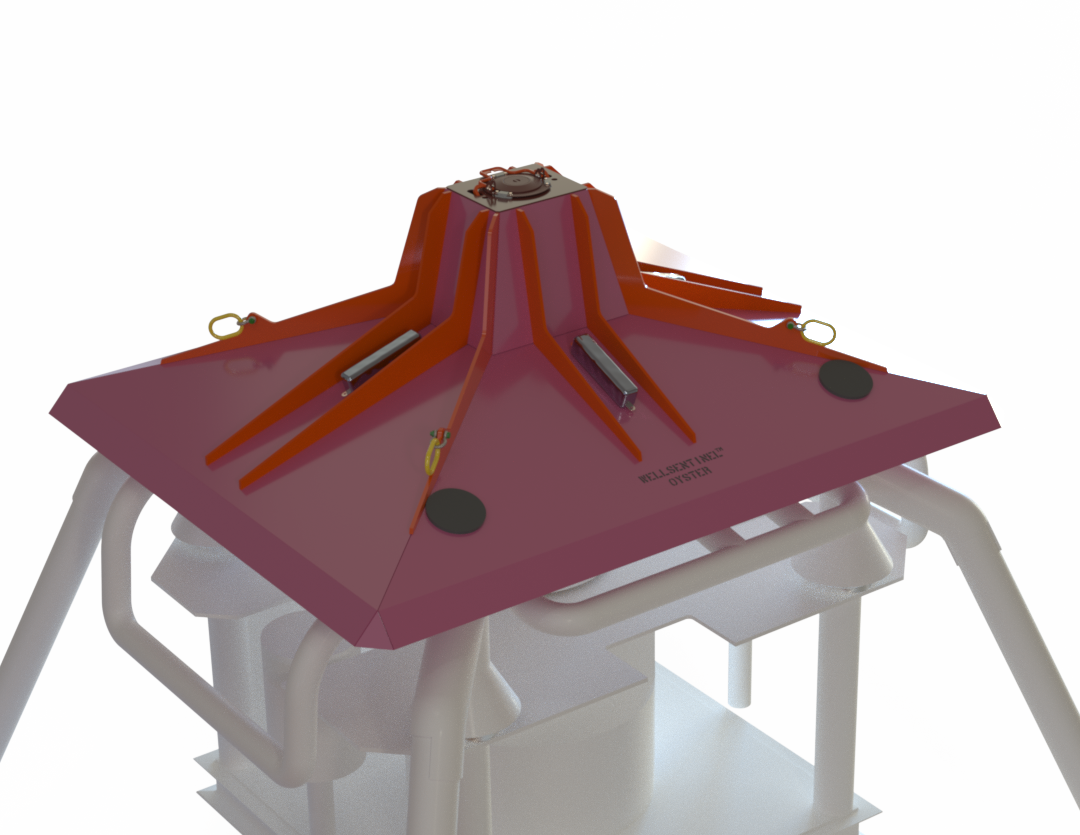

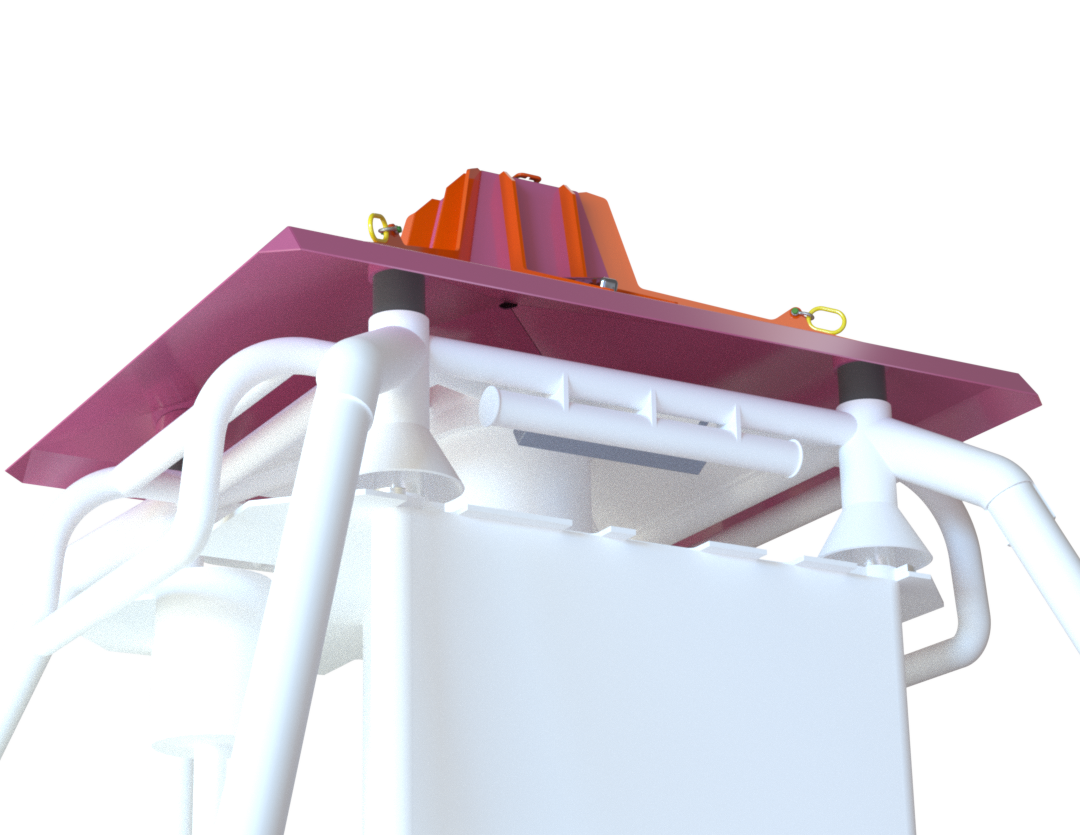

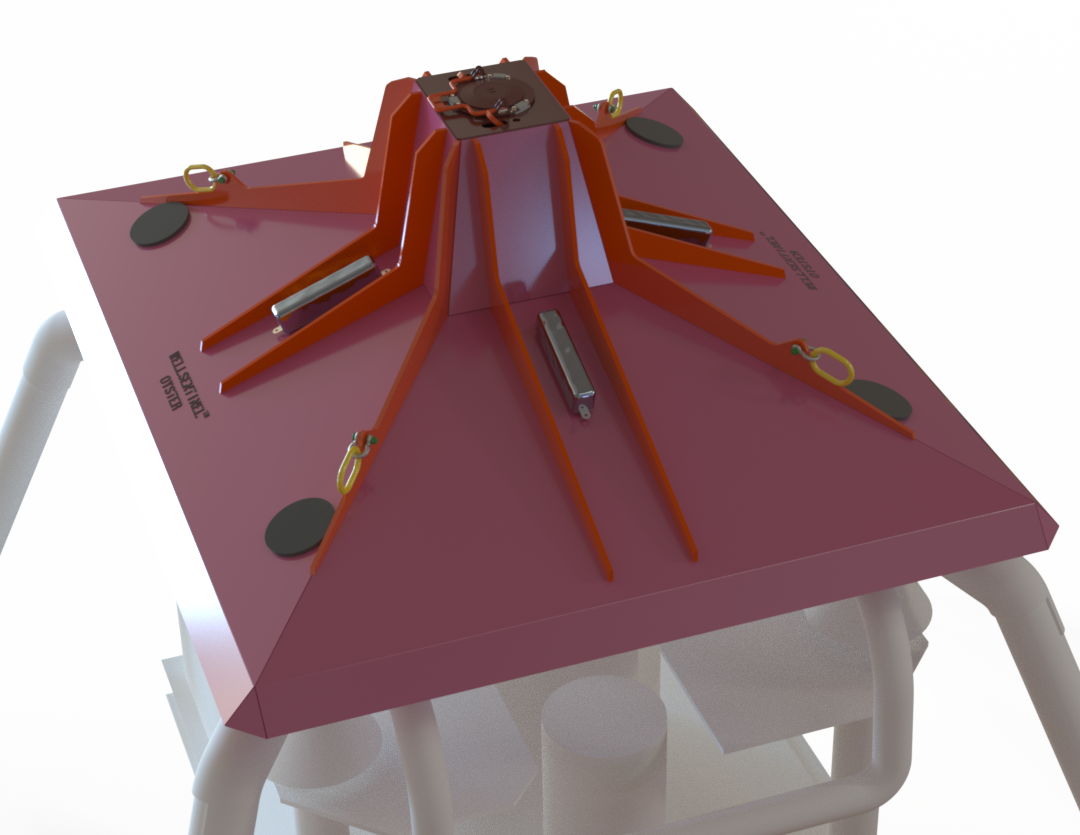

WellSentinel™ Oyster
WellSentinel™ Oyster systems are a canopy-style solution designed to provide extensive area monitoring coverage for subsea Christmas trees (XTs) with protective structures in place.
With various options for installation, the system can latch and lock onto a protective structure or interface directly with any guideposts that may be in place. We collaborate closely with clients to develop a customised solution tailored to their specific subsea Christmas tree requirements.
Subsea Christmas Tree (XT) or Wellhead

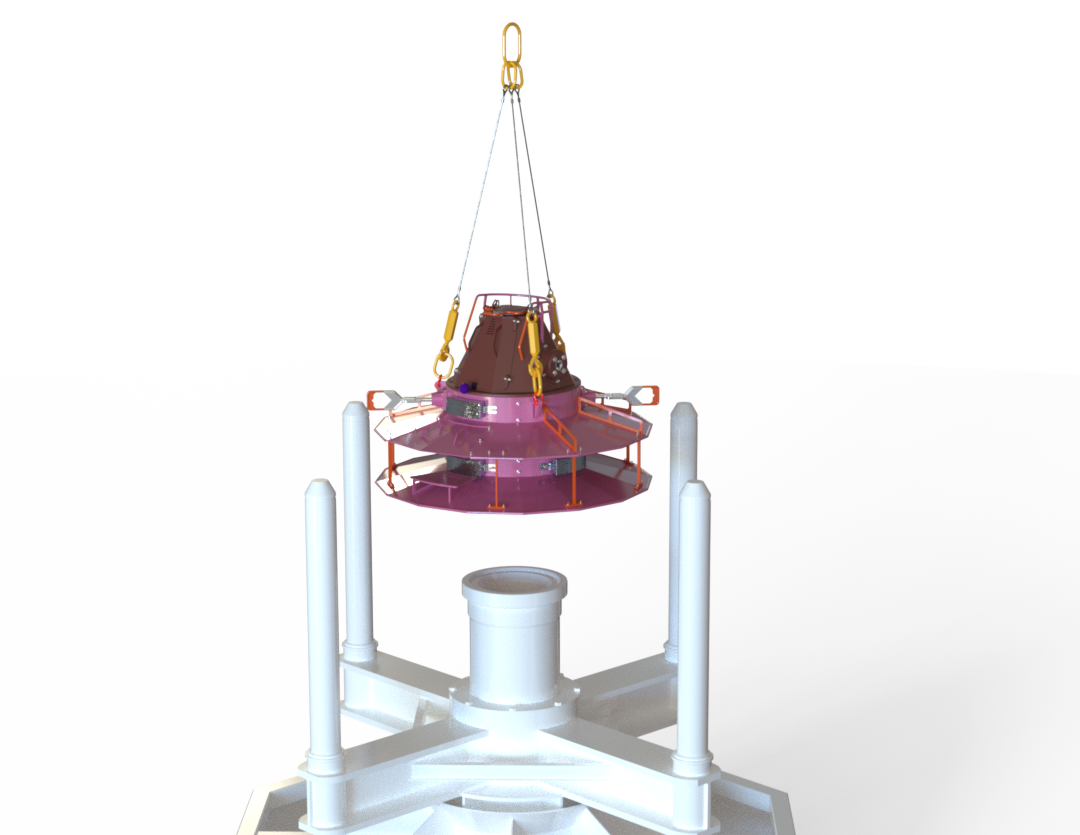

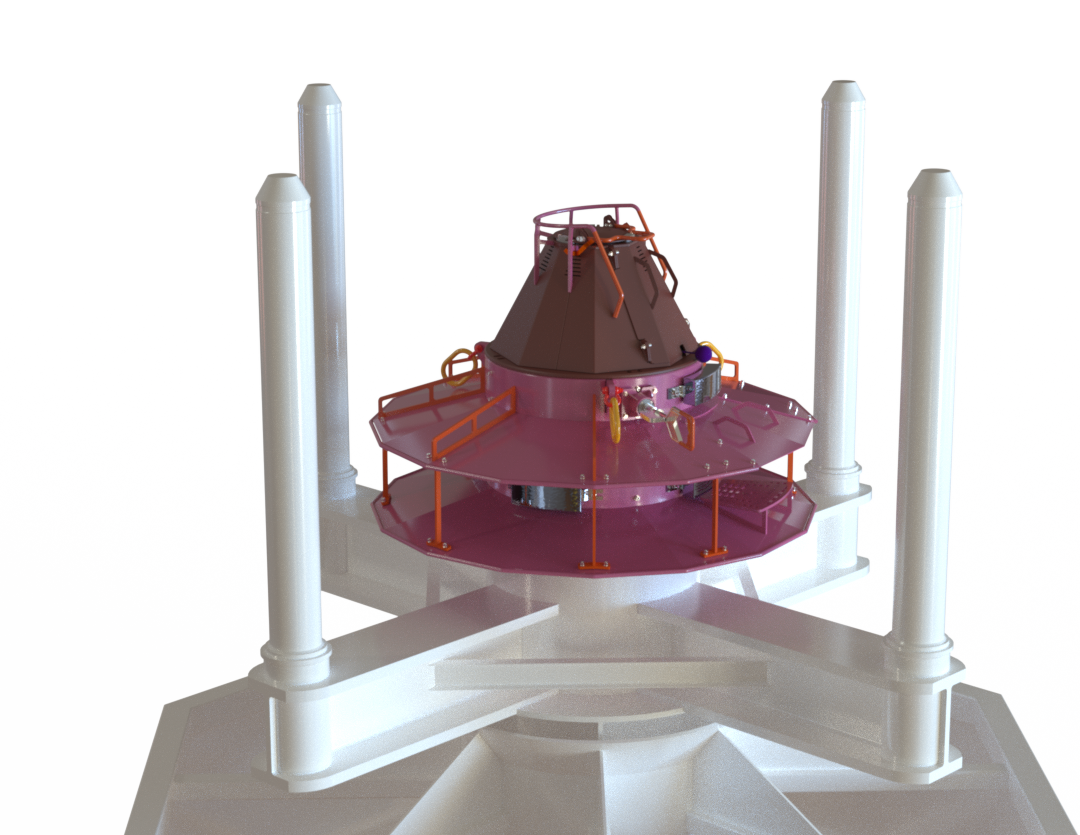

WellSentinel™ Hybrid
The WellSentinel™ Hybrid system offers a versatile solution for both wellhead/christmas tree (XT) monitoring and external coverage, with field-proven detection capabilities up to 5 metres away from well centre.
This system can be deployed on wellheads to monitor areas beyond the immediate vicinity or installed on top of subsea Christmas trees (XTs), depending on local conditions. Designed with modularity in mind, the system accommodates a range of wellhead/mandrel sizes, including 18-3/4”, 16-3/4”, 13-5/8”, and 30”.
Subsea Wellhead

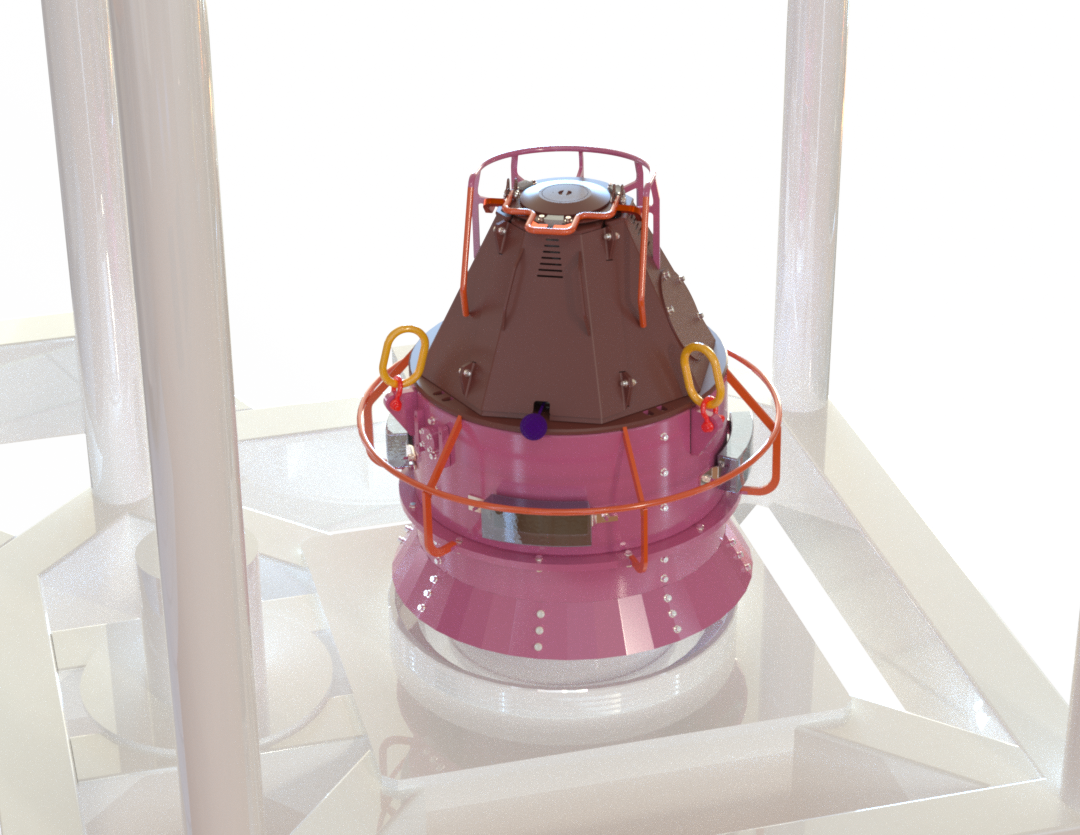

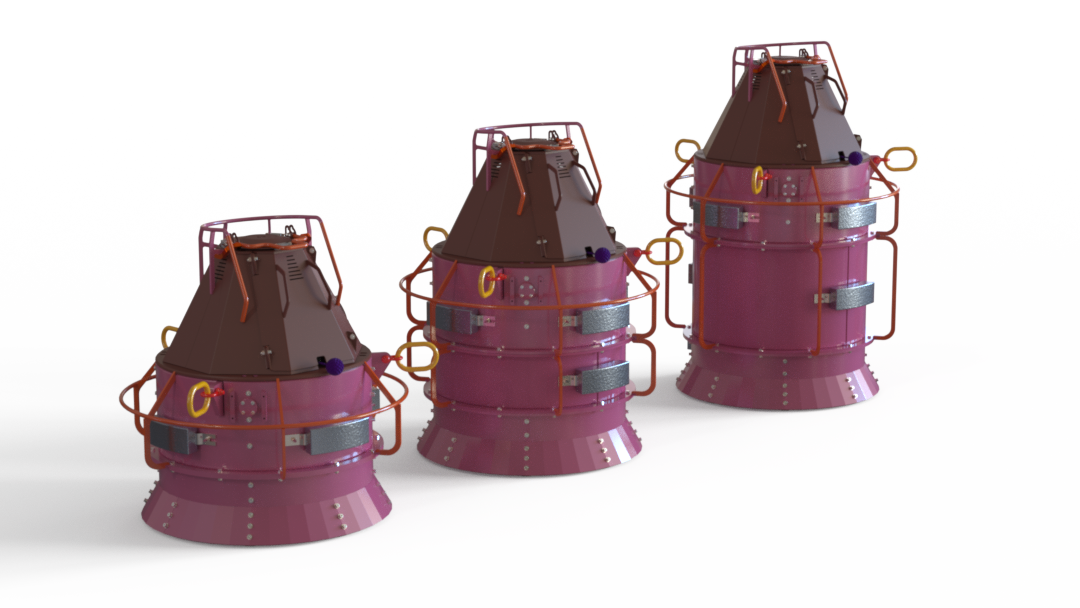

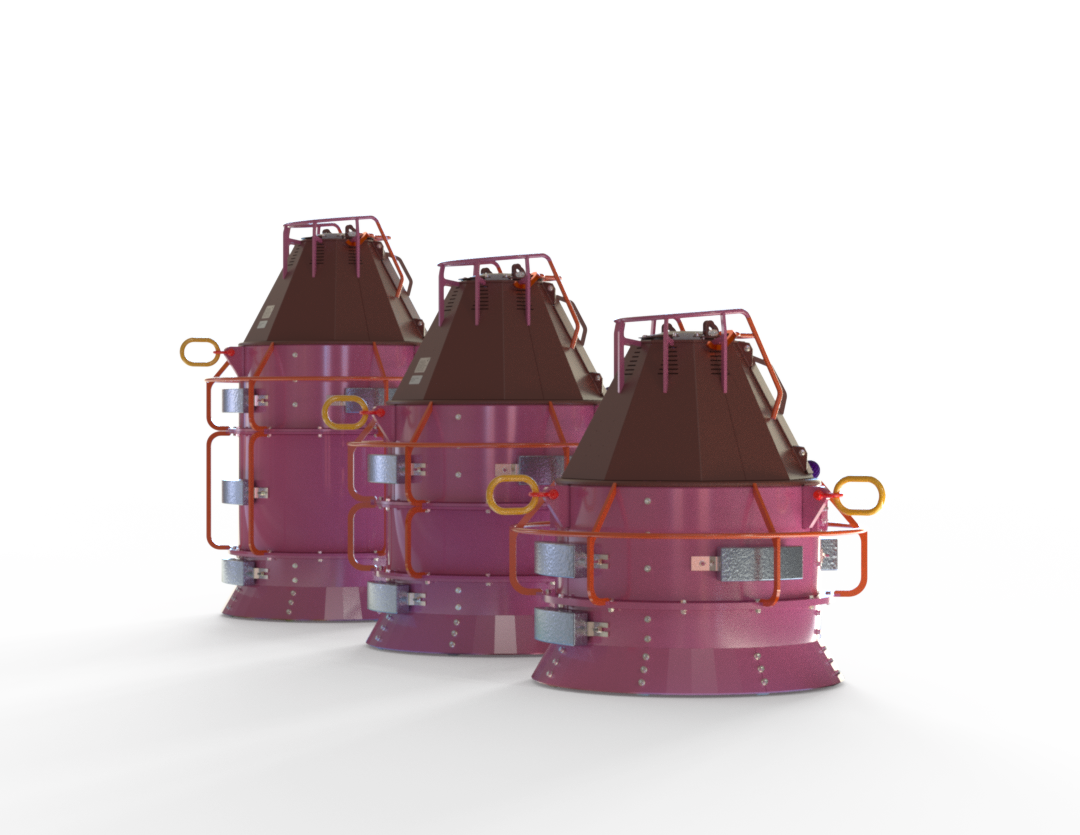

WellSentinel™ Coral
WellSentinel™ Coral systems are installed directly onto subsea wellheads and provide monitoring of the wellbore and low- and high-pressure housing.
The systems are TRL - Level 9, and designed to be modular and can fit a range of wellhead sizes (18-3/4”, 16-3/4”, 13-5/8”, 30”) and are designed for recovery and reinstallation on other wellheads.
Individual Components or Areas of Concern

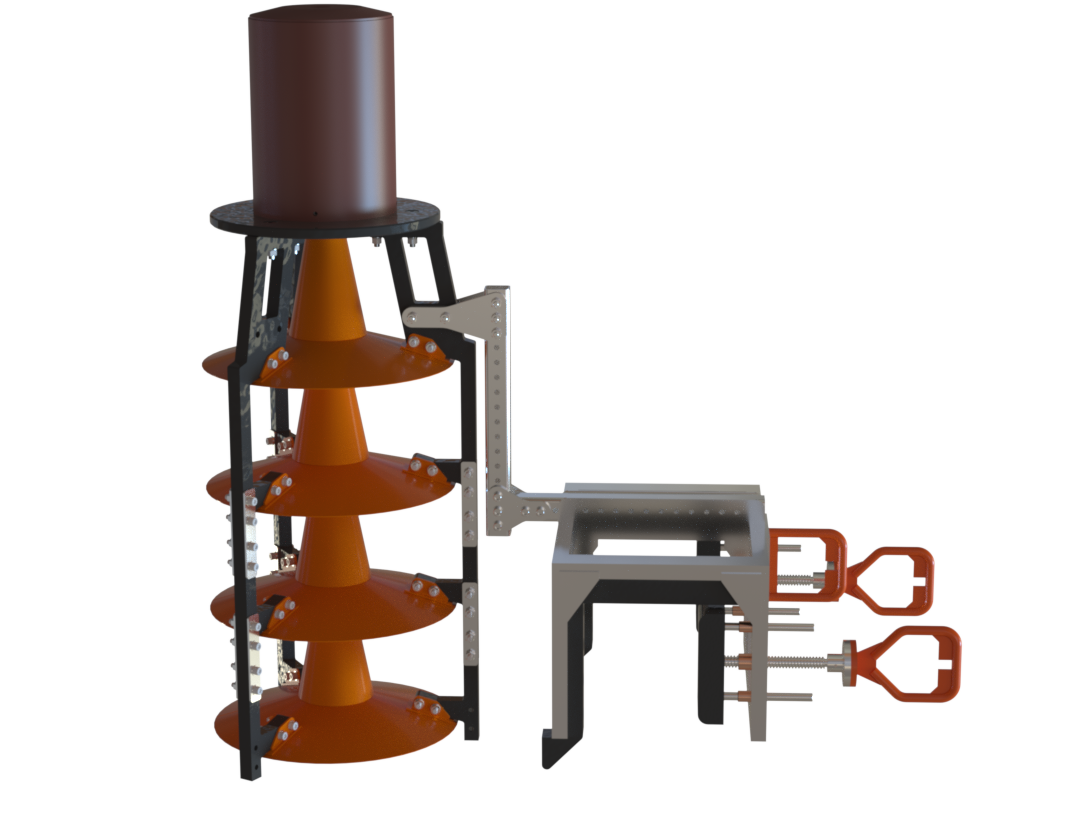

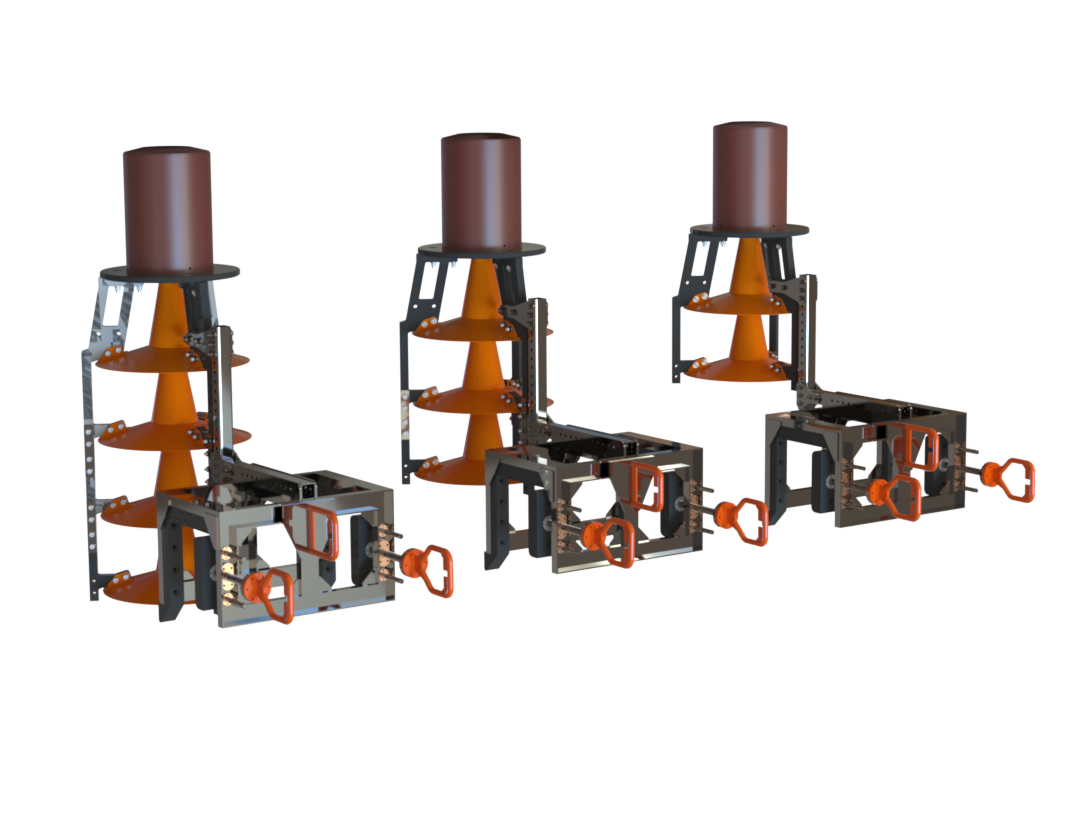

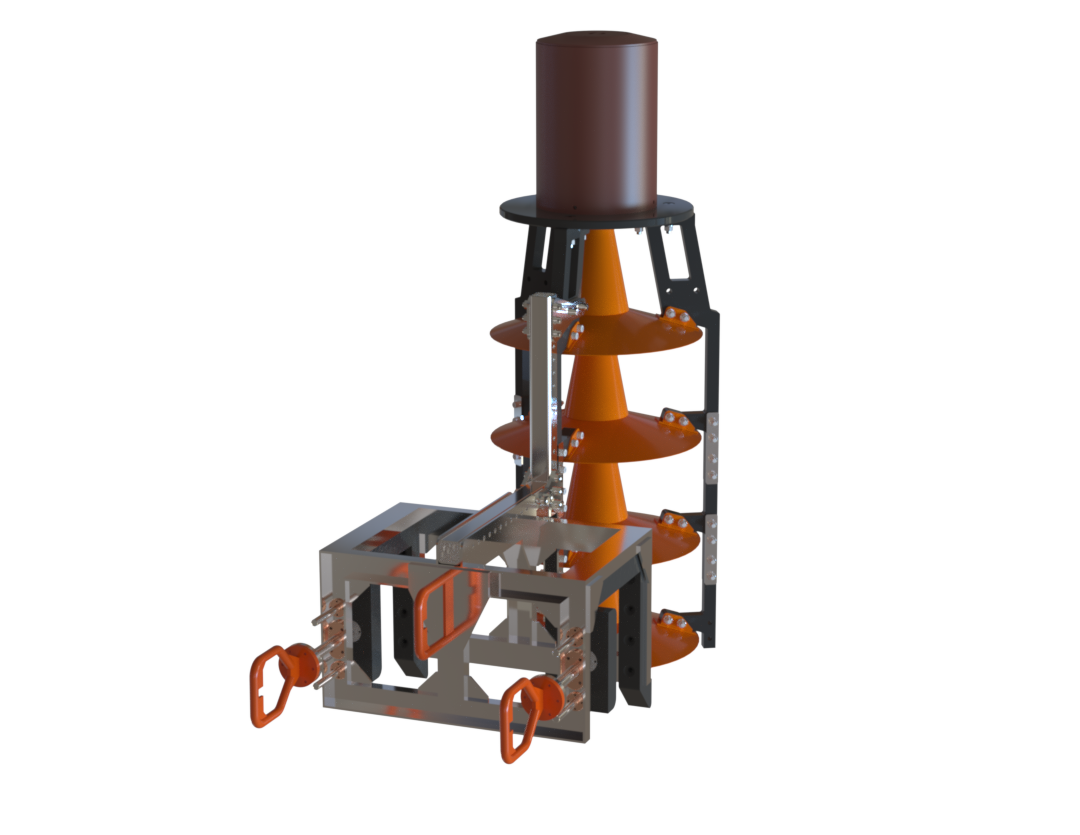

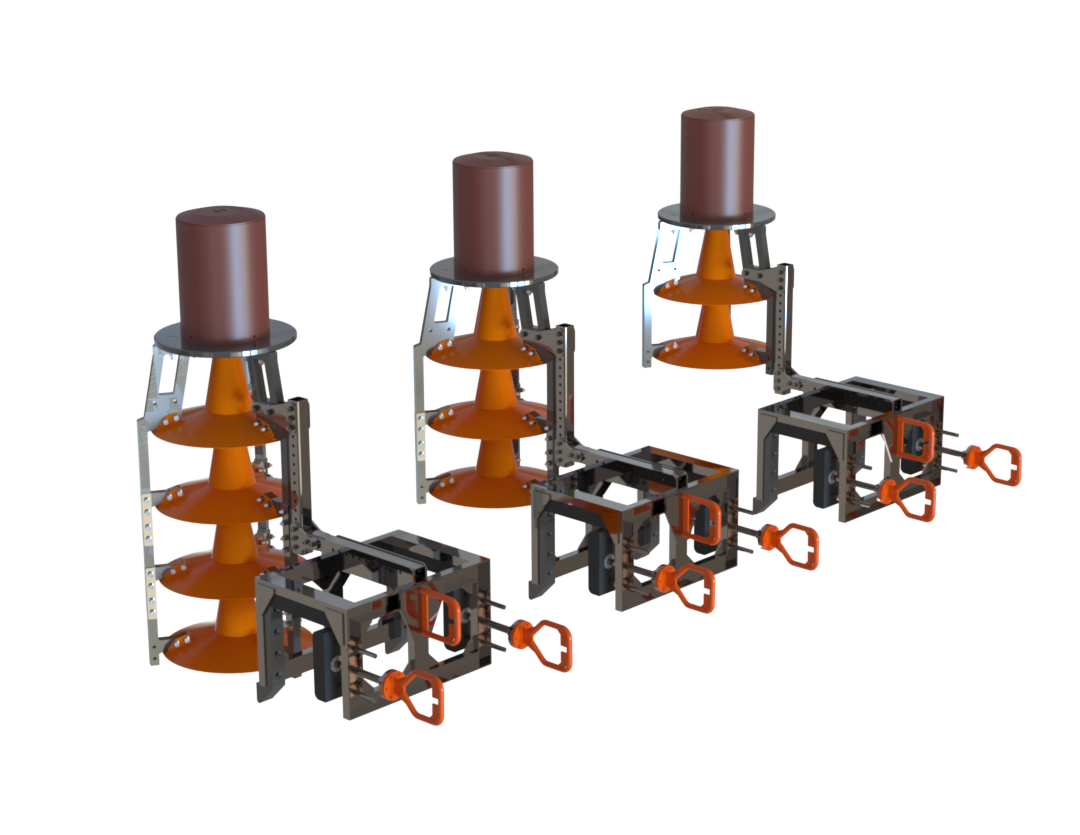

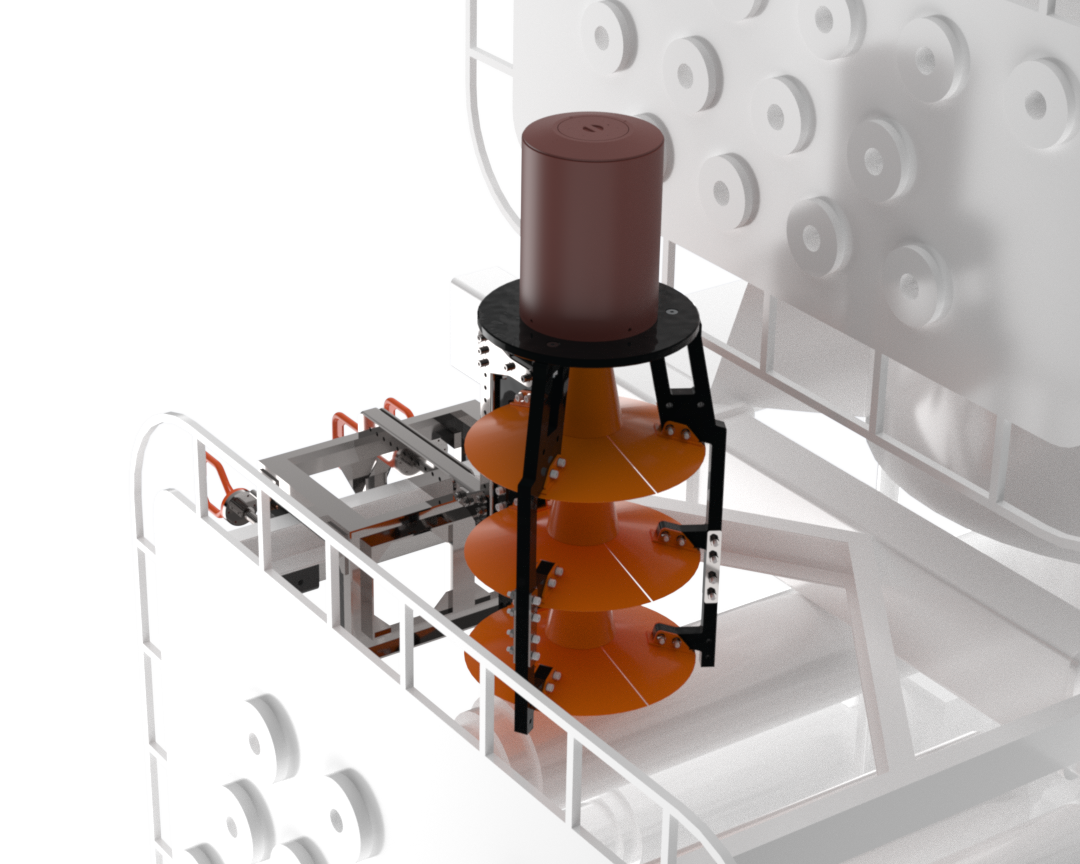

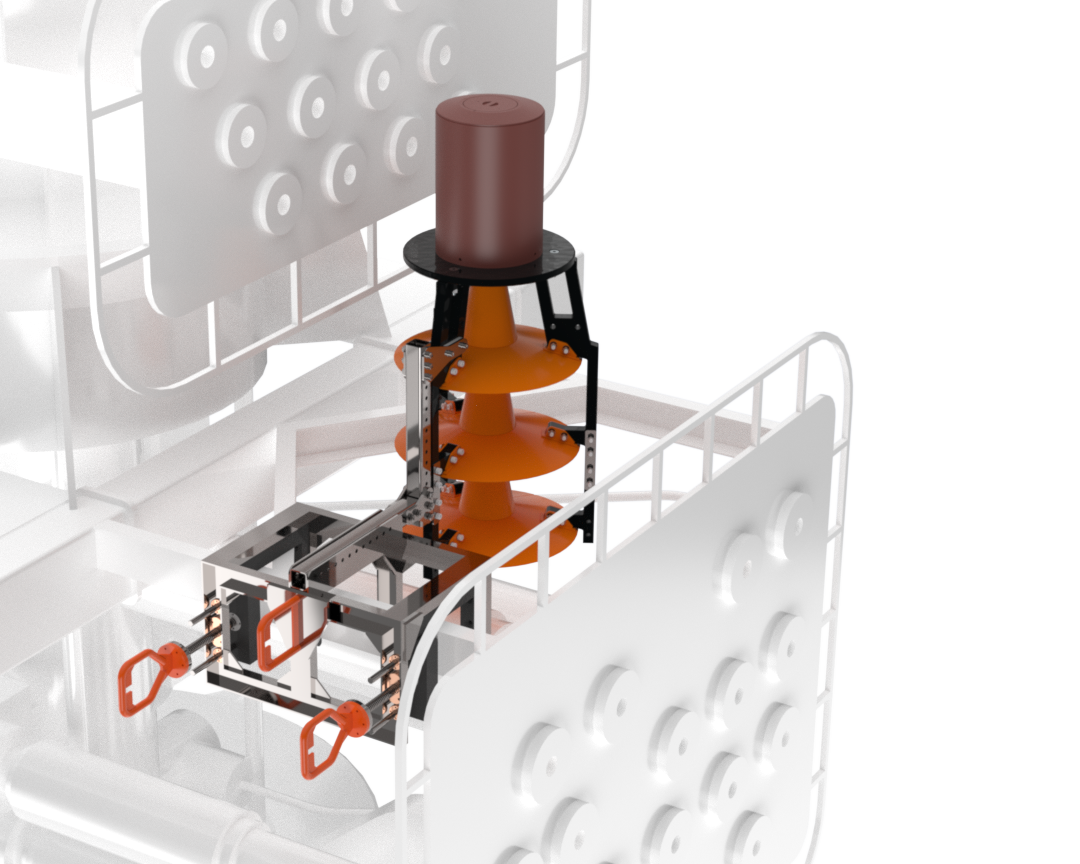

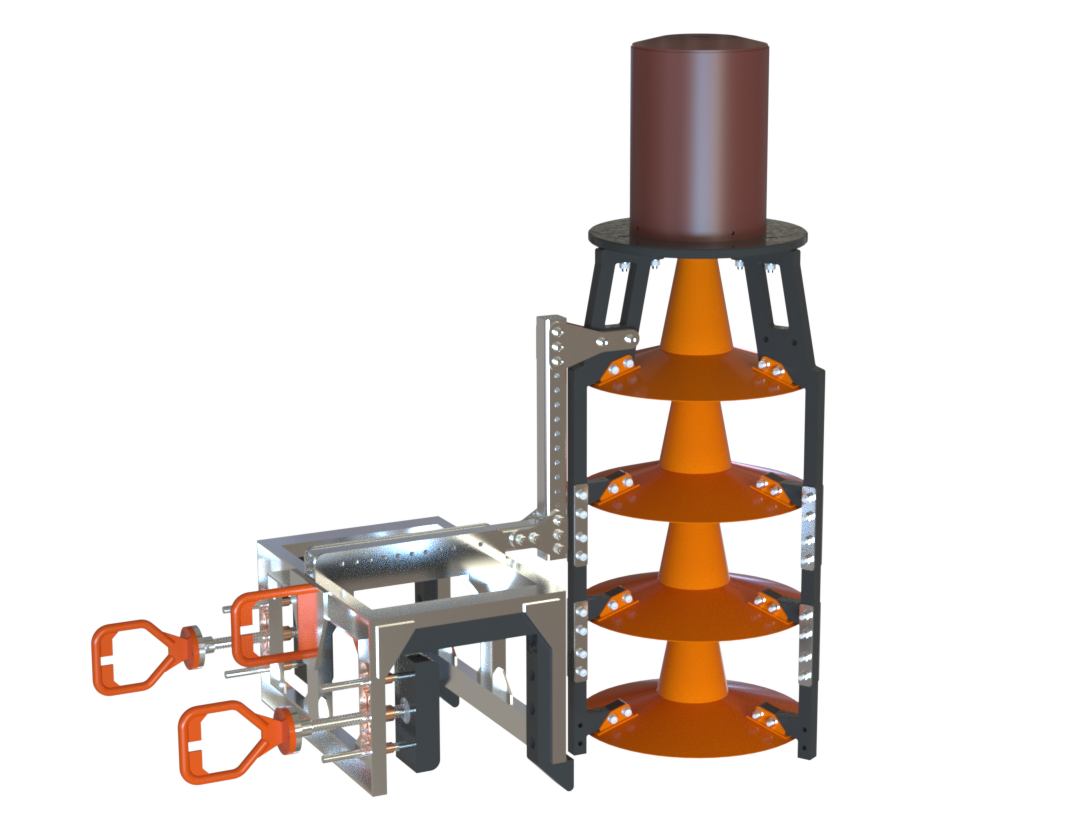

WellSentinel™ Frondlet
WellSentinel™ Frondlet systems are lightweight compact systems designed for installation on subsea structures via remotely operated vehicles (ROVs), eliminating the need for a vessel crane.
These systems can be securely attached to subsea structures using bespoke clamps as needed. By leveraging knowledge of an asset's high-risk areas or known issues, combined with subsea current data, optimal placement of the systems on the asset ensures capture of any emission from a predetermined area on the asset.
Seabed or Legacy Asset

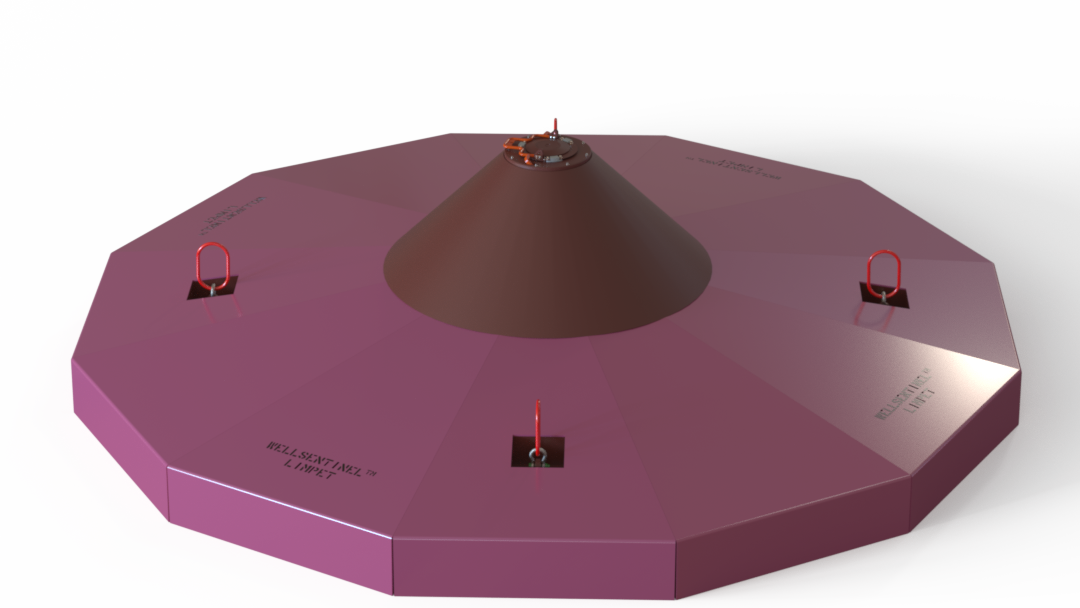

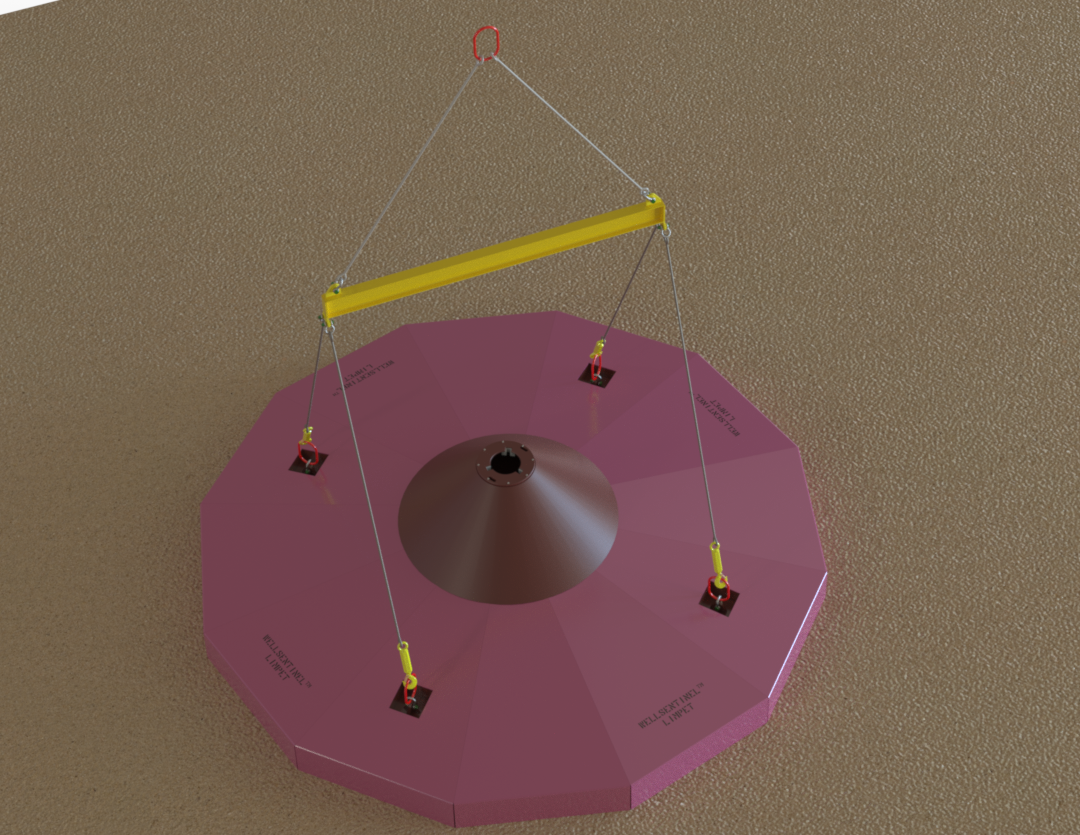

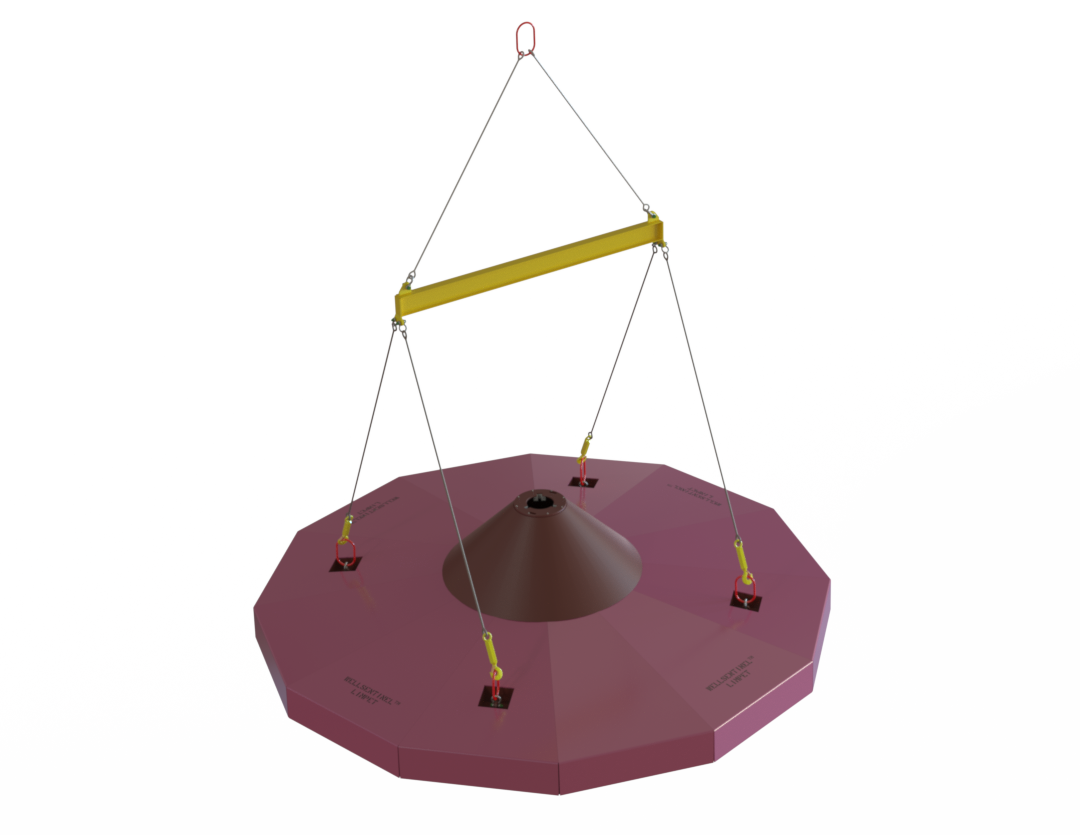

WellSentinel™ Limpet
WellSentinel™ Limpet systems are designed for direct installation onto the seabed or mudline, with placement determined by the specific area of focus for potential loss of containment (LoC).
This system is optimised for deployment on a clear seabed, particularly in areas where legacy infrastructure has been cut and buried, ensuring unobstructed conditions. The Limpet system captures any emissions as they migrate into the surrounding marine environment.
We work closely with clients to develop a customised and secure solution, tailored to the unique conditions of each site to ensure reliable performance.
Don’t see your subsea well type here?
WellSentinel™ systems are designed to monitor across the full well lifecycle, simplifying monitoring operations, minimizing risk, lowering costs, and supporting compliance
Risk
With continuous 24/7 monitoring, Sentinel systems help extend asset life or improve P&A scheduling, reducing operational risk and safeguarding even remote assets.
Reduction
Our technology delivers multiple OPEX savings, driving down the costs associated with subsea monitoring and maintenance.
Compliance
As environmental regulations evolve, WellSentinel™ systems assist operators in navigating the complex and ever-changing compliance landscape.
Monitoring
Unlike intermittent monitoring solutions, WellSentinel™ provides 24/7, uninterrupted monitoring of subsea assets, regardless of their remoteness.
Solution
Our passive Trigger technology eliminates the need for active subsea power or continuous data communication, offering a true plug-and-play solution.
Detection
Sentinel systems are engineered for early detection of integrity issues, allowing operators to respond quickly and mitigate potential environmental, financial, and reputational risks.
Deploy
WellSentinel™ systems are designed for straightforward deployment onto subsea infrastructure, requiring no complex interventions and ensuring quick installation.
Solution
Built for durability, Sentinel systems are intended for long-term subsea deployment, providing reliable monitoring over extended periods.
